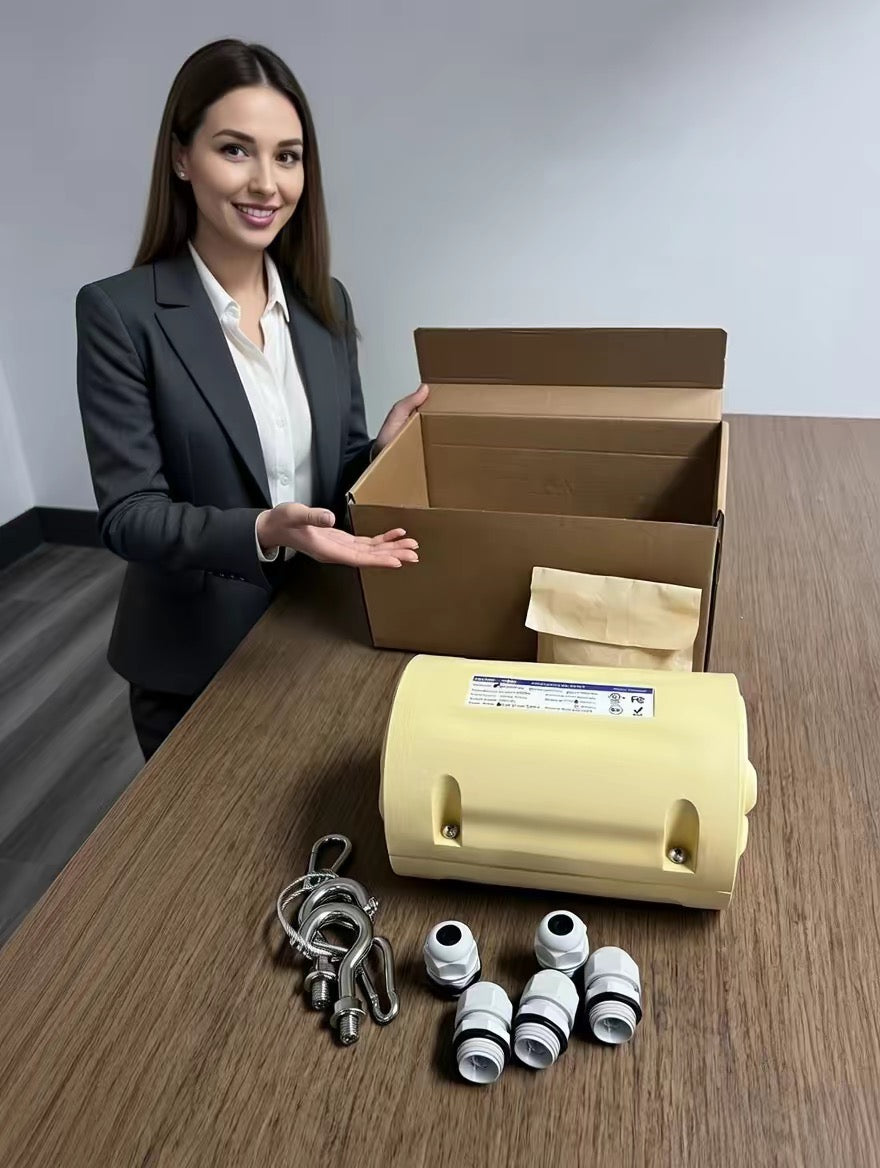

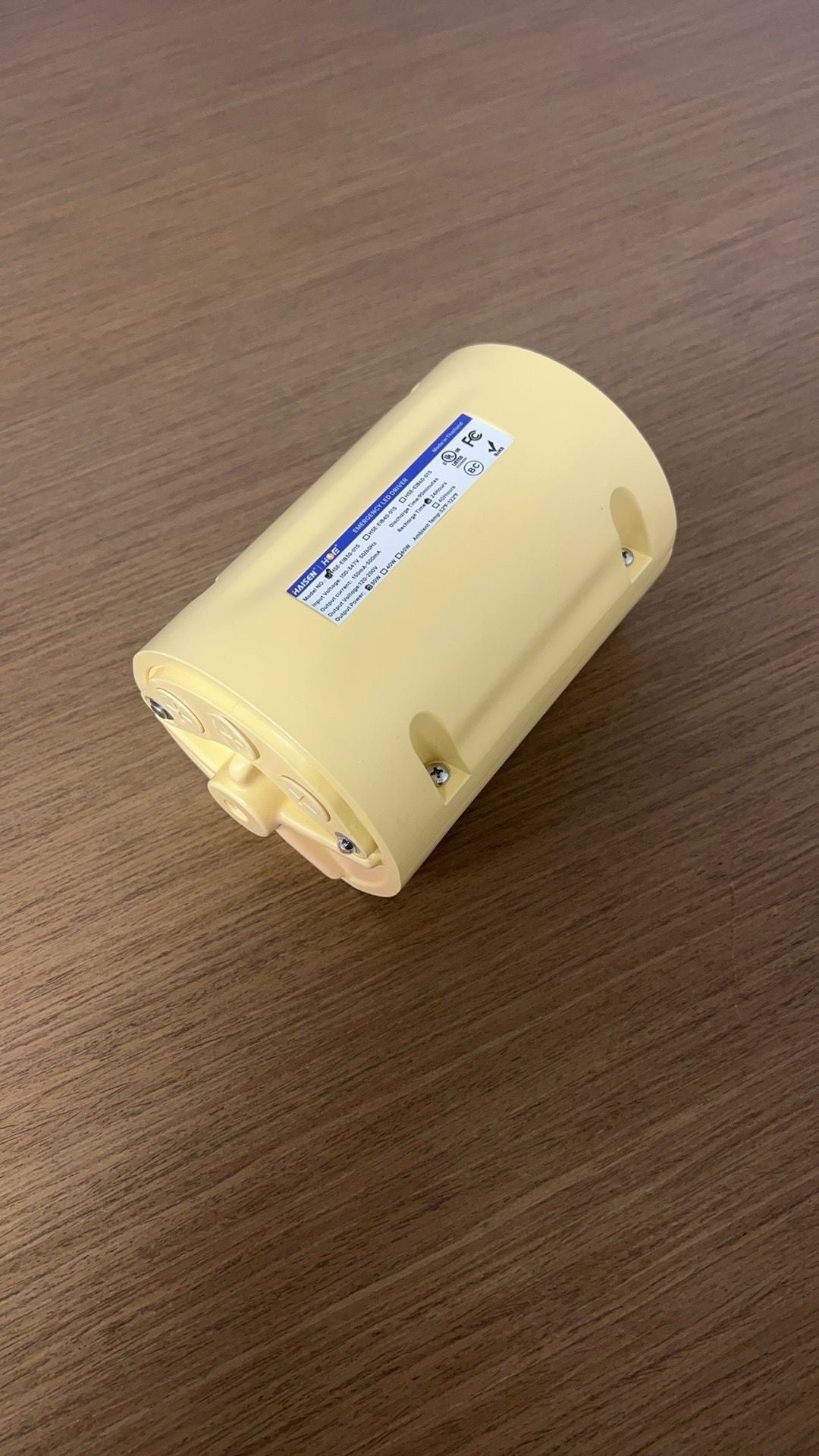

LED Emergency Driver for UFO High Bay ES-EIB30-01S

LED Emergency Driver for UFO High Bay 30W/ 14.8V,5200mAh/ 100-347VAC,50/60Hz

DESCRIPTION
*Description: AC solution EM for 9~350W LED luminaire
*It must connect 0/1-10V dimming wires if power of
 luminaire > power of EM.
FEATURES
＊UL listed for field or factory installation,CEC title 20 compliant
＊Compliance with American NFPA 101 life Safety Code.

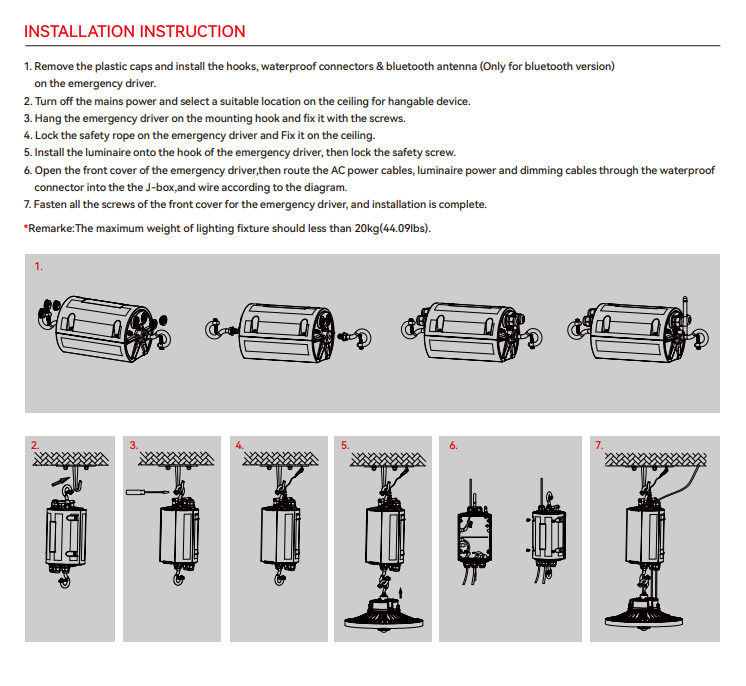

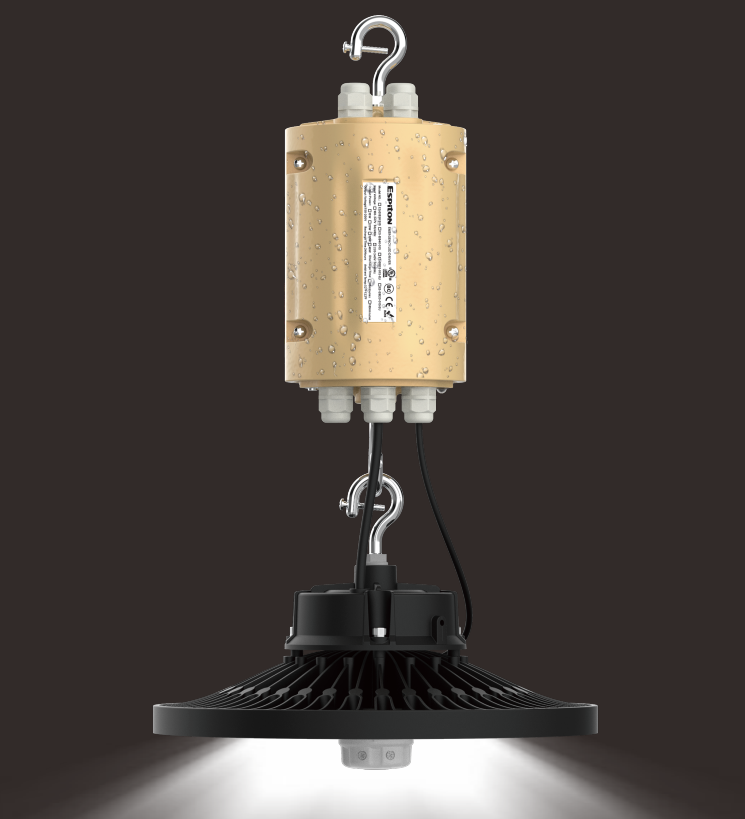

＊Easy installation,no need to open up a luminaire to connect this
 device to the driver,connect with the led lamp directly.

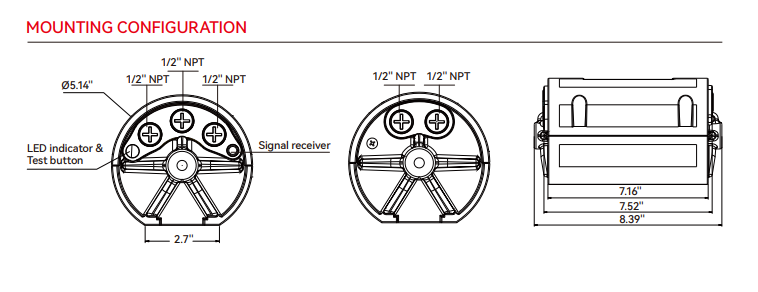

＊With built-in junction box.
＊2 -in- 1 LED test switch and indicator light included
＊Manual testing via remote control (optional)
＊Monthly/annual self-testing
＊With multi-protection function：
 Battery overcharge protection
 Battery over-discharge protection
 Output overload protection
 Short-circuit protection
 Open load protection
＊5 years limited warranty
ELECTRICAL SPECIFICATIONS
＊Input voltage: 100-347VAC,50/60Hz
＊Input current: 0.15A max
＊Input power: 12W Max
＊Power factor：0.6@100Vac，0.5@347Vac
＊Output voltage: 120-200Vdc 250V MAx
＊Battery: Li-ion
＊Recharge duration: 24Hrs
＊Emergency duration: 90mins
＊Ambient temp: 0-50℃(32℉-122℉)
